Three Phase Static Stabilizer – 3 Phase
Three-phase static stabilizer; One of the methods to solve the imbalances in the mains voltage is static stabilizer with microprocessors. Regulation speeds are very high. For this reason, they are especially preferred because they offer precise solutions to small changes in the mains voltage and also in machines with motor.As the microprocessor control, ZVC-B Technique triggered the semiconductor thyristors and the regulation speed was increased 10 times.
ARTSAN brand microprocessor static stabilizer, thyristors used are capable of carrying 100 times the normal operating current for 20 ms. Because of this feature, they are very useful in systems that draw instantaneous high current.
Three-phase static regulators with stepro microprocessors do not contain mechanical parts. Therefore, no wear problems. It has a modular structure. It is lighter and smaller in size than the servo stabilizer.
It offers 30-50% efficiency advantage compared to a quality servo regulator in idle working situations. Thus, at the end of 2 years, it will pay the price difference between servo regulators thanks to the electricity saving.Thus, at the end of 2 years, it will pay the price difference between servo regulators thanks to the electricity saving.
In three-phase static stabilizer transformers, electricity consumption is minimized with high efficiency obtained by using silicon blended sheet. Transformer winding, 200 C heat resistant H0 class enamelled, copper wires are used. Thanks to the protection unit (high voltage, low voltage, over current, over heat), the static stabilizer is deactivated in hazardous situations.

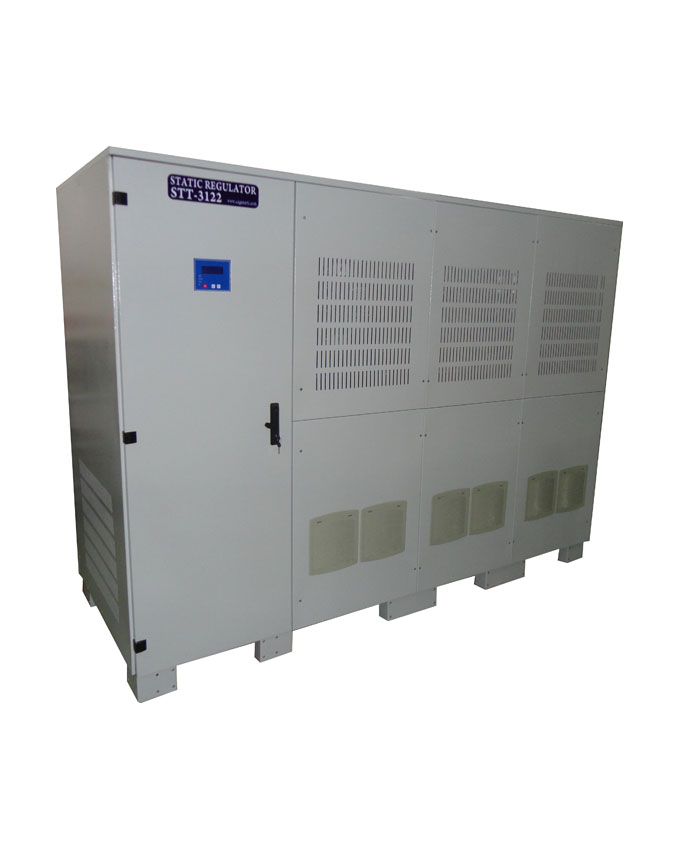

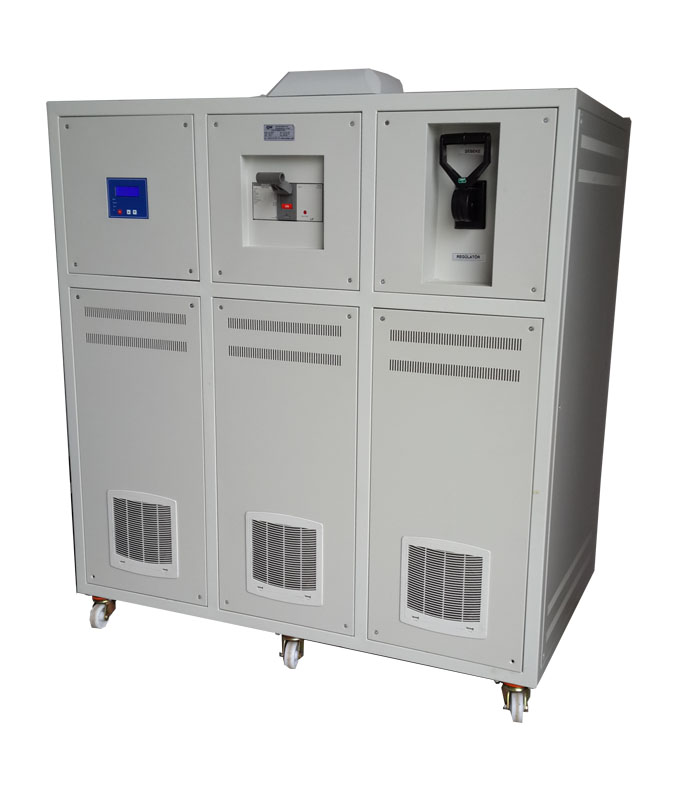

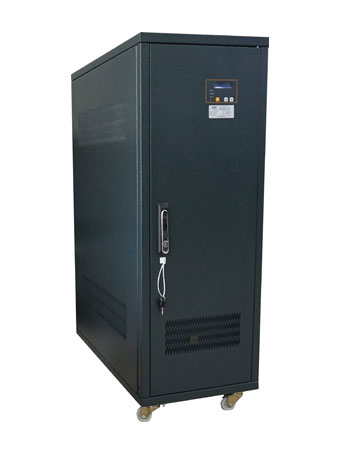

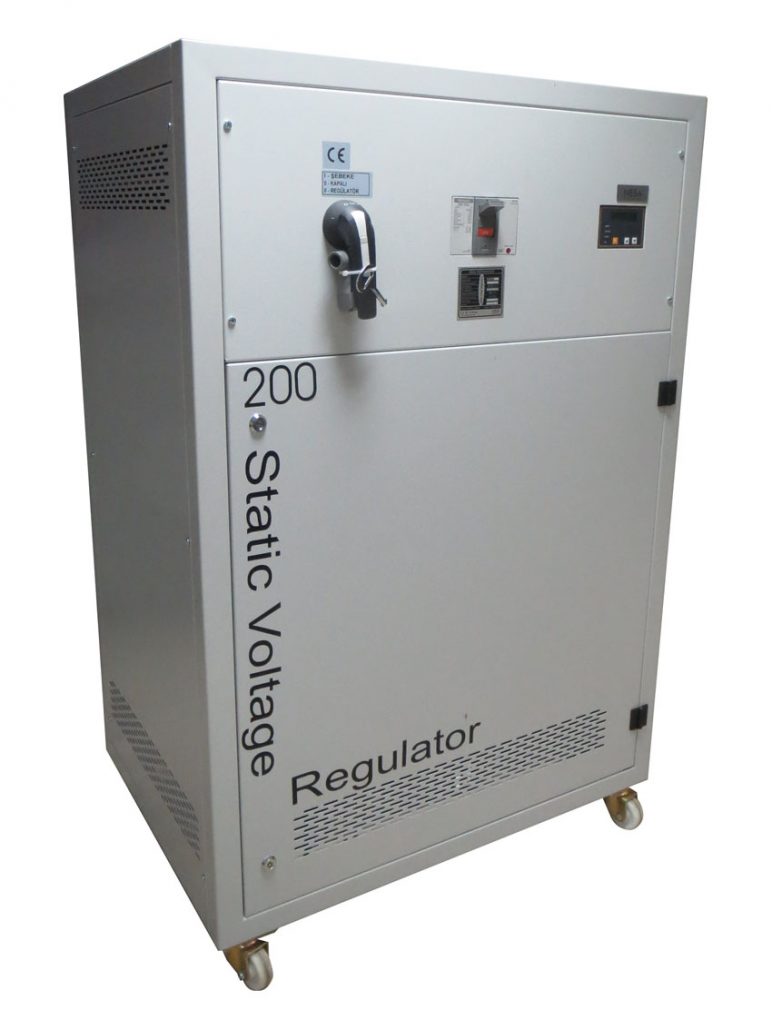

Three Phase Static Stabilizer Product Gallery
- Click on the photo to enlarge three-phase static regulator photos. ·
Three Phase Static Regulator General Features
- Fully domestic production
- Semikron brand thyristor modules
- Socomec changeover switch
- ABB brand Compact switch
- DUCATI brand outlet filter
- Microprocessor controlled
- Full sine wave output
- Output voltage sensitivity of 1-3%
- Correction rate of 000 V / s
- Buster transformer / buster transformer structure
- Small dimensions,
- Light
- saving
- Wide voltage correction field
- 000 – 22,000 gausse sheet
- Class H copper or aluminum winding
- Aluminum or copper Foil wrap
- Adjustable output voltage
- Over-heat protection
- Overcurrent protection
- Output voltage high protection
- Output voltage low protection
- 2×16 LCD
- Input and output voltage monitoring
- Tracking fault information
- Manual Bypass
- Socomec changeover switch
- Cooling with fan
- Quiet operation
- Wheeled
- conditions test
- Plug-in or terminal connection terminal block
- IP 20 – IP65 Protection class
- CE and ISO-9001 certified
- Special packaging
Technical Specifications (22,5 kVA – 250 kVA)
| MODEL | ST3-223A | ST3-303A | ST3-453A | ST3-603A | ST3-753A | ST3-104A | ST3-124A | ST3-154A | ST3-204A | ST3-254A |
| Power (kVA) | 22,5 | 30 | 45 | 60 | 75 | 100 | 120 | 150 | 200 | 250 |
| INPUT | ||||||||||
| Voltage | 3×380 VAC, 3 Phase+ Neutral | |||||||||
| Input Range | A- 275 – 450 VAC | |||||||||
| B- 300 – 430 VAC | ||||||||||
| C- 220 – 420 VAC | ||||||||||
| D- 190 – 500 V AC | ||||||||||
| S – Special | ||||||||||
| Current (A) | 32 | 43 | 65 | 87 | 108 | 145 | 174 | 217 | 289 | 362 |
| Frequency | 50 Hz ±%10 | |||||||||
| OUTPUT | ||||||||||
| Voltage | 3×380 VAC, 3 Phase+ Neutral | |||||||||
| I.Tolerance | %2,5 Standart (Optionally changeable) | |||||||||
| Current | 32 | 43 | 65 | 87 | 108 | 145 | 174 | 217 | 289 | 362 |
| Frequency | 50 Hz ±%10 | |||||||||
| INDICATOR AND MONITOR | ||||||||||
| Type | 2 x 16-character backlit alphanumeric LCD display | |||||||||
| Panel | Touch Buttons | |||||||||
| Measurements | R, S, T Input Voltage, U, V, W Output Voltage, U, V, W output current, frequency | |||||||||
| LCD Notices | System Normal, Input Fault, Output High, Output Low, Overload, Overload Shutdown, Overload By-Pass (optional), Thyristor Fault, Phase Failure | |||||||||
| LED | Input: Green, Output: Green, Error: red, Normal: Green | |||||||||
| Language | Turkish or English | |||||||||
| PROTECTION | ||||||||||
| Output Voltage | Low: 320 V High: 420 V (adjustable from the LCD panel) | |||||||||
| Overload | Fuse protection and electronic protection | |||||||||
| Thyristor Malfunction | The output is automatically cut off. written warning | |||||||||
| Extreme Heat | Output is interrupted after 10 seconds after warning on LCD | |||||||||
| By-Pass | Standard Manual (Optional automatic) | |||||||||
| Noise Filtering | Surge Suppressor, EMI / RFI Filter Options * | |||||||||
| GENERAL | ||||||||||
| Efficiency | ≥ 97% (at full load) | |||||||||
| THD | <0.3% at linear load | |||||||||
| Reg. Speed | 5.000 V/s | |||||||||
| Noise Lev. | <45 dBA, from 1 meter | |||||||||
| O.temperature | 0 ° C ~ 40 ° C, maximum 90% (non-condensing) | |||||||||
| S.Temperature | -20°C ~ +70°C | |||||||||
| Protection | X type: IP20 (Standard) Y Type: IP23 Z Type: IP54 | |||||||||
| Device Color | RAL 7035 | |||||||||
| Cooling | Forced cooling with fan | |||||||||
| Size (WxDxH) | 300x580x720 | 400x1000x850 | 400x400x600 | |||||||
* Available from 22,5 KVA to 100 KVA horizontal or standing type alternatives.
* Alternative colors are available for all powers.
Technical Specifications (300 kVA – 2500 kVA)
| MODEL | ST3-304A | ST3-404A | ST3-504A | ST3-604A | ST3-804A | ST3-105A | ST3-125A | ST3-165A | ST3-205A | ST3-255A |
| Power (kVA) | 300 | 400 | 500 | 600 | 800 | 1.000 | 1.250 | 1.600 | 2.000 | 2.500 |
| Input | ||||||||||
| Voltage | 3×380 VAC, 3 Faz + Nötr | |||||||||
| Input Range | A- 275 – 450 VAC | |||||||||
| B- 300 – 430 VAC | ||||||||||
| C- 220 – 420 VAC | ||||||||||
| D- 190 – 500 V AC | ||||||||||
| S – Special | ||||||||||
| Current (A) | 434 | 580 | 725 | 870 | 1.160 | 1.450 | 1.811 | 2.318 | 2.898 | 3.626 |
| Frequency | 50 Hz ±%10 | |||||||||
| OUTPUT | ||||||||||
| Voltage | 3×380 VAC, 3 Faz + Nötr | |||||||||
| I.Tolerance | %2,5 Standart (Optionally Changeable) | |||||||||
| Current | 434 | 580 | 725 | 870 | 1.160 | 1.450 | 1.811 | 2.318 | 2.898 | 3.626 |
| Frequency | 50 Hz ±%10 | |||||||||
| INDICATOR AND DASHBOARD | ||||||||||
| Type | 2 x 16-character backlit alphanumeric LCD display | |||||||||
| Panel | Touch Buttons | |||||||||
| Measurements | R, S, T Input Voltage, U, V, W Output Voltage, U, V, W output current, frequency | |||||||||
| LCD Notices | System Normal, Input Fault, Output High, Output Low, Overload, Overload Shutdown, Overload By-Pass (optional), Thyristor Fault, Phase Failure | |||||||||
| LED | Input: Green, Output: Green, Error: red, Normal: Green | |||||||||
| Language | Turkish or English | |||||||||
| PROTECTION | ||||||||||
| Output Voltage | Low: 320 V High: 420 V (adjustable from the LCD panel) | |||||||||
| Overload | Fuse protection and electronic protection | |||||||||
| Thyristor Malfunction | The output is automatically cut off. written warning | |||||||||
| Over Heat | Output is interrupted after 10 seconds after warning on LCD | |||||||||
| By-Pass | Standard Manual (Optional automatic) | |||||||||
| Noise Filtering | Surge Suppressor, EMI / RFI Filter Options * | |||||||||
| GENERAL | ||||||||||
| Efficiency | ≥ 97% (at full load) | |||||||||
| THD | <0.3% at linear load | |||||||||
| Reg. Speed | 5.000 V/s | |||||||||
| Noise Lev. | < 45 dBA, 1 metreden | |||||||||
| O. Temperature | 0°C ~ 40°C, maksimum %90 (yoğunlaşmamış) | |||||||||
| P.Temperature | -20°C ~ +70°C | |||||||||
| Protection | X type: IP20 (Standard) Y Type: IP23 Z Type: IP54 | |||||||||
| Device Color | RAL 7035 | |||||||||
| Cooling | Forced cooling with fan | |||||||||
| Sizes (WxDxH) | 300x580x720 | 400x1000x850 | 400x400x600 | |||||||
* Available from 22,5 KVA to 100 KVA horizontal or standing type alternatives.
* Alternative colors are available for all powers.
GENERAL USAGE AREAS
Homes
Electronic test equipment
CNC machines
TV and video recorders
Telephone exchange
Medical Devices
Computers
Lighting
Electronic Test Equipment
Motorized machines
Marine Equipment
Telecommunication Devices
Fire and Security Systems
hospitals
shipyards
Textile Machinery
Welding Machines
Radio & TV Stations
Solution
Technical support
Corporate
Contact
