EXTERNAL STATIC STABILIZER (OUTDOOR)
Machines that need to be used outdoors are also affected by excessive changes in voltage.
However, the standard type of static regulators can not be used in open environments such as excessive heat generated by the sun’s rays, rain, snow, etc. because of malfunction. As a special solution for such situations, we have Outdoor (static) type regulator production. The internal walls of these regulators cabinets are covered with heat insulation materials against sun rays and are designed in accordance with IP54, IP65 standards to prevent the ingress of rain and similar liquids.In addition, special filters are added to the ventilation inlets to prevent the entrance of dust particles.
It can be used without worrying in places where there is no place to be installed in indoor areas, in places where hospitals, factories, residences etc. have to be put into external environment.
Surge arrester is used to protect against the effects of lightning due to external environment.
The electronic semiconductor materials that used for regulation in an external type static regulator have been selected to suit these harsh conditions.
Agricultural irrigation systems, tower cranes used in construction sites, etc. is used safely under heavy conditions.
In the regulator transformers, electricity consumption is minimized with the high efficiency obtained by using silicon blended sheet metal. In the winding of the transformers, copper wires with H0 class enamel coating resistant to 200 centigrade heat are used. Thanks to the protection unit (high voltage, low voltage, over current, over heat), the static regulator is deactivated in hazardous situations.

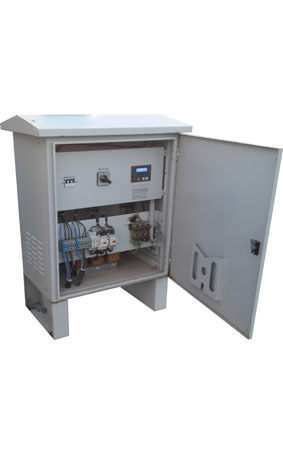

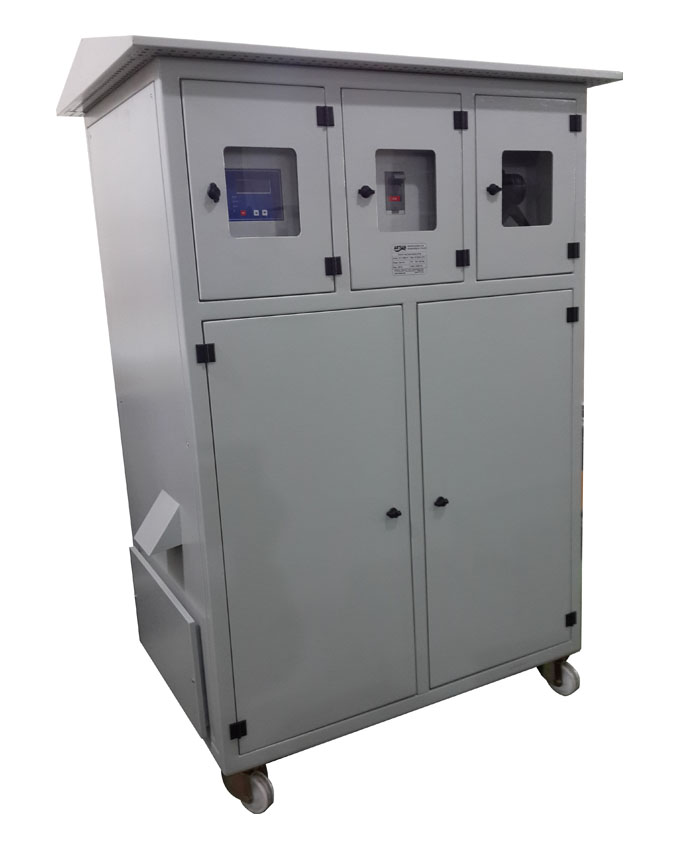

External Type Static Stabilizer Product Gallery
· Click photo to enlarge.
- Outdoor type IP54 – IP65
- Thermal insulation on inner walls against sunlight
- Dust protection with filter
- Protection against rain, snow and all kinds of liquids
- Special heating and cooling systems in cabin
- Fiberglass protected LCD screen
- Fully domestic production
- Semikron brand thyristor modules
- Socomec changeover switch
- ABB brand Compact switch
- DUCATI brand outlet filter
- Microprocessor controlled
- Full sine wave output
- Output voltage sensitivity of 1-3%
- Correction rate of 000 V / s
- Buster transformer / buster transformer structure
- Small dimensions,
- Earth leakage protection
- Surge Arrester Protection
- Wide voltage correction field
- 000 – 22,000 gausse sheet
- Class H copper or aluminum winding
- Aluminum or copper Foil wrap
- Adjustable output voltage
- Over-heat protection
- Overcurrent protection
- Output voltage high protection
- Output voltage low protection
- Input and output voltage monitoring
- Tracking fault information
- Manual Bypass
- Socomec changeover switch
- Cooling with fan
- Quiet operation
- Wheeled
- conditions test
- Plug-in or terminal connection terminal block
- IP 20 – IP65 Protection class
- CE and ISO-9001 certified
- Special packaging
External Type Static Regulators are produced specially for your needs, please contact us for technical details.
Agricultural irrigation systems
Tower cranes
Extremely dusty and watery factory environments
Outdoor Lighting
Heavy weighing devices
Gas stations
Homes,
Hospitals,
Marinas
Base stations
Outdoor organizations
CNC machines
TV and video recorders
Telephone exchange
Medical Devices
Computers
Electronic Test Equipment
Radio & TV Stations
Welding Machines
shipyards
